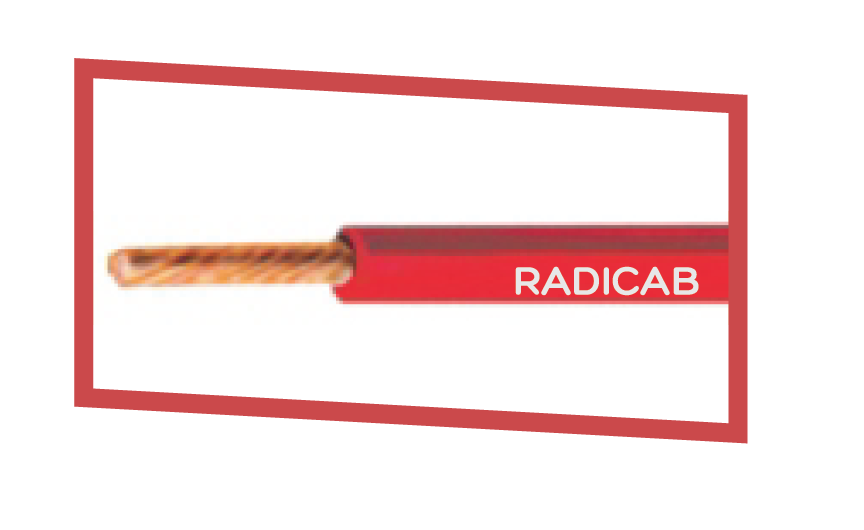

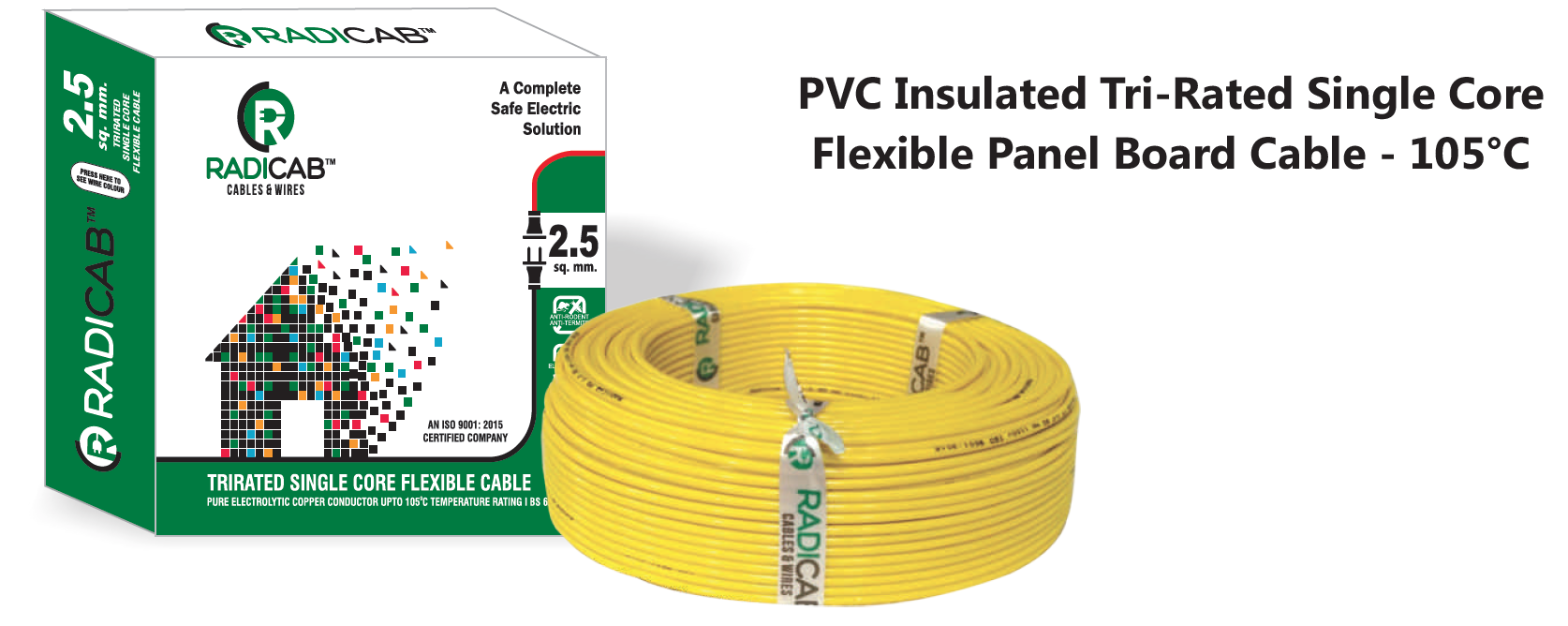

These cables are intended for use in fixed installations such as power, lighting, appliances and switchgear & control panel wiring.
| Nominal Cross Sectional area of conductor | Number/Nom. Dia of cond. strands* | Thickness of Insulation (Nom) | Thickness of Insulation (Nom) | Max. Conductor Resistance at 20ºC | Current Rating AC |
|---|---|---|---|---|---|
| sq. mm. | mm | mm | mm | Ohms/Km | Amps |
| 0.50 | 16/0.21 | 0.80 | 2.60 | 39.0 | 6 |
| 0.75 | 24/0.21 | 0.80 | 2.80 | 26.0 | 10 |
| 1.00 | 32/0.21 | 0.80 | 3.00 | 19.5 | 17 |
| 1.50 | 30/0.26 | 0.80 | 3.30 | 13.3 | 22 |
| 2.50 | 50/0.26 | 0.80 | 3.70 | 7.98 | 31 |
| 4.00 | 56/0.31 | 0.80 | 4.30 | 4.95 | 40 |
| 6.00 | 84/0.31 | 0.80 | 4.90 | 3.30 | 51 |
| 10.00 | 80/0.41 | 1.00 | 6.20 | 1.91 | 71 |
| 16.00 | 126/0.41 | 1.00 | 7.30 | 1.21 | 95 |
