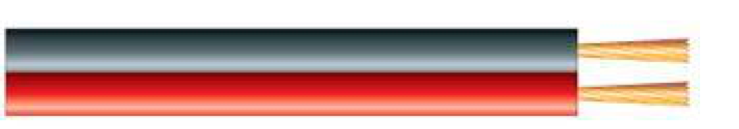

PVC INSULATED TWIN FLEXIBLE CABLES
Application:
Speaker cables are highly recommended for use in connecting speakers, public address system for clear and distortion free voice with low dB loss.
Technical Data:
- Max. Operating Temperature : 70°C
- Rated Voltage : 300/500V
- Specifications : BSEN 50525-2-11 / IEC 60228
- Range : 2C X 0.50-6.0 mm²
Table: Technical Specifications
Speaker Cables
| Equivalent AWG | "Nominal Cross Sectional area of Conductor | Max. DC Conductor Resistance at 20°C | Insulation Dimsension |
|---|---|---|---|
| sq. mm. | Ω/km | (W*H) | |
| 22 | 0.5 | 39 | 4.2 x 2.1 |
| 19 | 0.75 | 26 | 4.7 x 2.4 |
| 18 | 1 | 19.5 | 5.7 x 2.9 |
| 16 | 1.5 | 13.3 | 6.0 x 3.0 |
| 14 | 2.5 | 7.98 | 7.0 x 3.6 |
| 12 | 4 | 4.95 | 8.4 x 4.1 |
| 10 | 6 | 3.3 | 9.6 x 4.7 |
