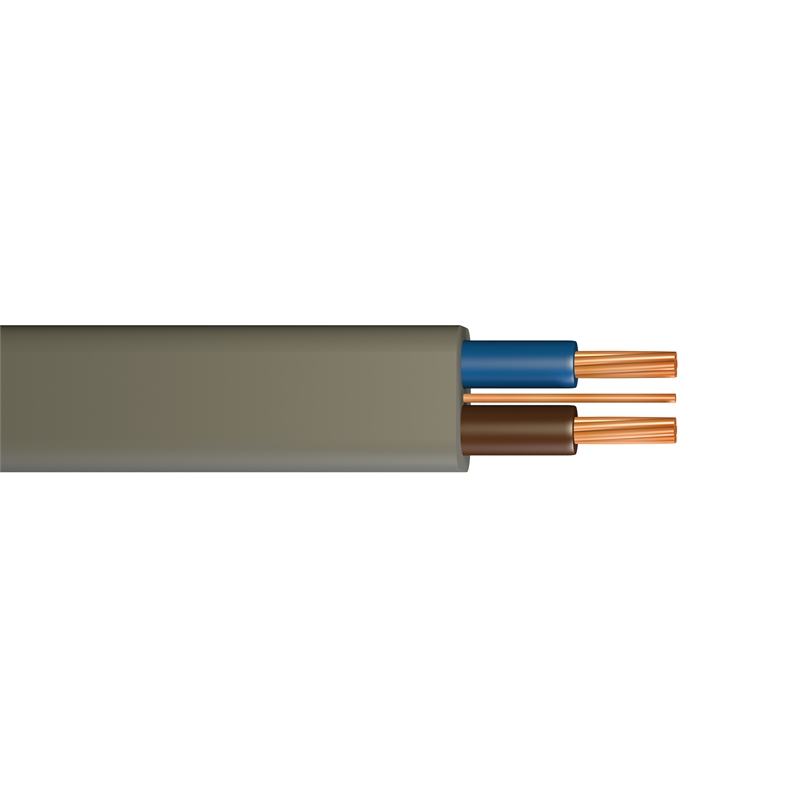

PVC INSULATED AND SHEATHED FLAT CABLES
Application:

For domestic and industrial wiring. Suitable for surface wiring where there is little risk of mechanical damage.

Technical Data:
  • Max. Operating Temperature : 70°C
  • Rated Voltage : 300/500V
  • Specifications : BS 6004
  • Range : 2C X 1.0 – 16 mm² + With or without earth
Table: Technical Specifications
Twin Flat Cables. Conforming BS EN 50525-2-11
Nominal Cross Sectional area of conductor Thickness of Insulation Nominal Sheath Thickness Insulation Dimsension Max. Conductor Resistance at 20ºC
sq. mm. mm mm (W*H) Ohms/Km
0.50 0.6 0.9 7.2 X 4.9 39.00
0.75 0.6 0.9 7.8 X 5.2 26.00
1.00 0.6 0.9 8.0 X 5.4 18.10
1.50 0.6 0.9 8.6 X 5.6 12.10
Twin Flat Cables
Application:

For domestic and industrial wiring. Suitable for surface wiring where there is little risk of mechanical damage.

Technical Data:
  • Max. Operating Temperature : 70°C
  • Rated Voltage : 300/500V
  • Specifications : BS EN 50525-2-11
  • Range : 2C X 0.50 – 16 mm²
Table: Technical Specifications
Twin Flat Cables with Earth. Conforming BS EN 50525-2-11
Nominal Cross Sectional area of conductor (sq.mm.) Thickness of Insulation (in mm) Nominal Sheath Thickness(mm) Insulation Dimsension (W x H) Max. Conductor Resistance at 20 Deg. C (Ohm/km)
sq. mm. mm mm (W*H) Ohms/Km
Phase Earth       Phase Earth
1.50 1 0.60 0.9 8.7 x 4.7 12.10 18.1
2.50 1.50 0.70 0.9 10.3 x 5.5 7.40 12.1
4.00 1.50 0.80 0.9 11.9 x 6.4 4.61 12.1
6.00 2.50 0.80 0.9 13.4 x 7.0 3.08 7.4
10.00 4.00 1.00 1.0 16.5 x 8.3 1.83 4.61
