Flexible wires especially designed for domestic electrical appliances and OEM’s, the multi-strand flexible wires with fire resistant properties are equipped with specially formulated insulation that enables the cable to withstand overloads. This prevents any electrical disasters or damage to the electrical appliances.

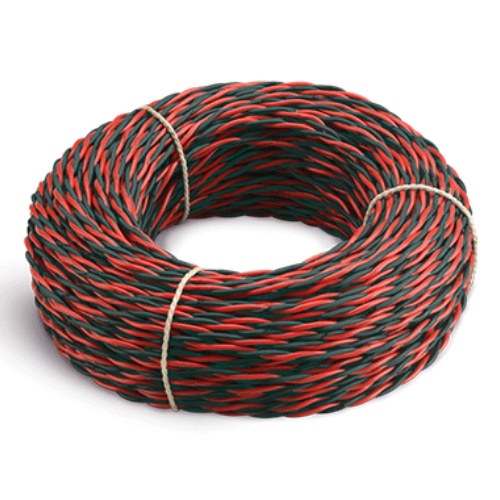

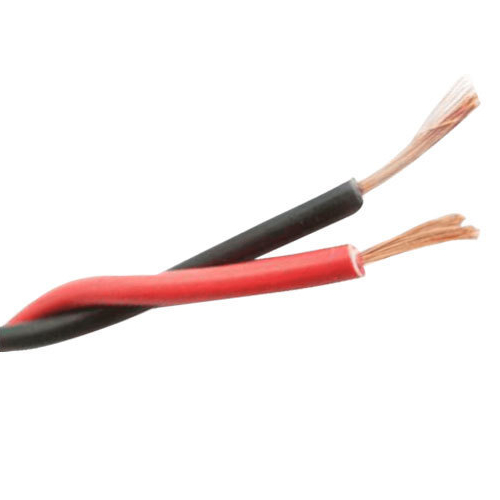

These wires are available in twin twisted and twin parallel flat in standard length of 90 meter coil in various magnificent colours.
Application:
Secure power supply across various lighting fixtures for lightings various electrical appliances.
Unique features:
- Designed to with stand adverse weather conditions.
- Made from 99.9% electrolytic grade copper.
- High quality virgin PVC insulation.
- Available in various colours and sizes.
- Ideal for single connections and decorative lights.
- Compact bunched conductor.
Table: Technical Specifications
Flexible Twin Twisted Unsheathed Cables Conforming IS 694:2010
| Number/Nom. Dia of cond. Strands | Thickness of Insulation (Nom) | Thickness of Insulation (Nom) | Current Rating AC | Max. Conductor Resistance at 20ºC |
|---|---|---|---|---|
| sq. mm. | mm | mm | Amps | Ohms/Km |
| 10/0.0020 | 0.5 | 1.3 | 2.1 | 50 |
| 14/0.0048 | 0.5 | 1.25 | 2.3 | 46 |
| 23/0.0048 | 0.5 | 1.3 | 2.6 | 40 |
| 30/0.0048 | 0.5 | 1.5 | 2.8 | 35 |
| 40/0.0048 | 0.6 | 1.7 | 2.9 | 30 |
