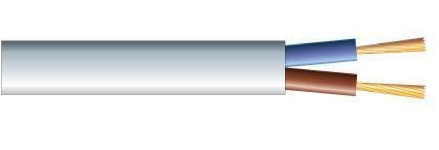

TWIN FLAT FLEXIBLE COPPER CABLES
Application:
For domestic and industrial wiring. Suitable for surface wiring where there is little risk of mechanical damage.
Technical Data:
- Max. Operating Temperature : 70°C
- Rated Voltage : 1100V
- Specifications : IS 694:2010
- Range : 2C X 0.50 – 16 mm²
Table: Technical Specifications
TWIN FLAT FLEXIBLE COPPER CABLES. Conforming IS 694:2010
| Nominal Cross Sectional area of conductor | Thickness of Insulation | Nominal Sheath Thickness | Insulation Dimsension | Max. Conductor Resistance at 20ºC |
|---|---|---|---|---|
| sq. mm. | mm | mm | (W*H) | Ohms/Km |
| 0.50 | 0.6 | 0.9 | 7.2 X 4.9 | 39.00 |
| 0.75 | 0.6 | 0.9 | 7.8 X 5.2 | 26.00 |
| 1.00 | 0.6 | 0.9 | 8.0 X 5.4 | 18.10 |
| 1.50 | 0.6 | 0.9 | 8.6 X 5.6 | 12.10 |
