Solar Cables

Solar Cables

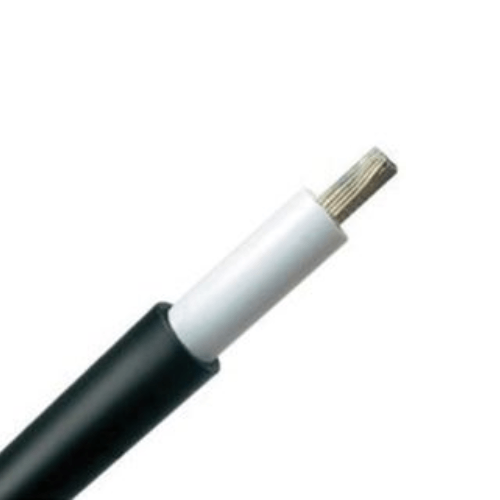

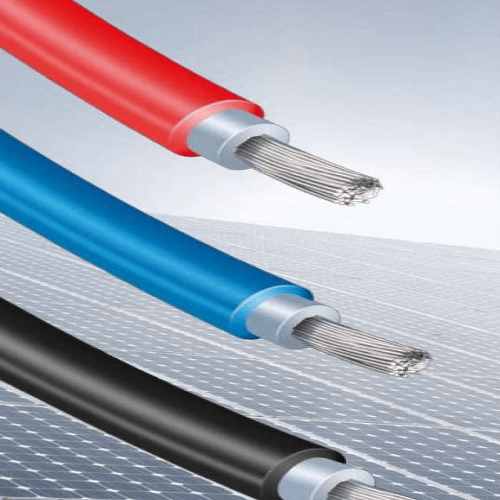

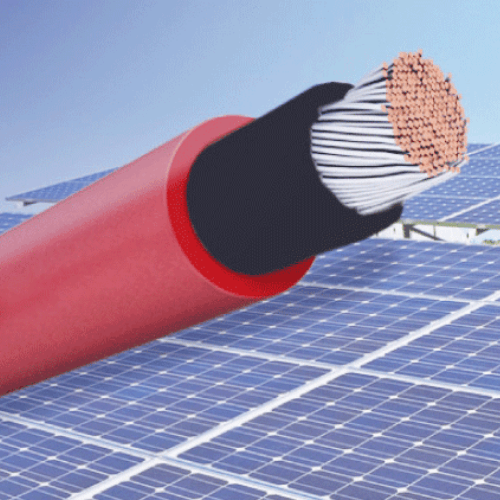

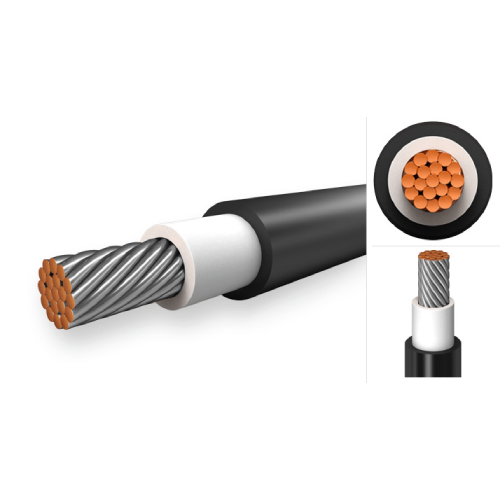

RADICAB PV Solar cables are designed for connecting photovoltaic power supply systems. They are dedicated to the photovoltaic system direct current (D.C.) side with a nominal D.C. voltage of a 1.5kV. These cables can be used indoor & outdoor for flexible and fixed installations with high mechanical strength in extreme weather conditions. These cables are designed to with stand the severe environmental conditions that arise in any fixed, mobile, roof or architecturally integrated photovoltaic installation.

Application:

Indoor & Outdoor including solar panels for flexible and fixed installations with high mechanical strength in extreme weather conditions.

Unique features:
Table: Technical Specifications
Solar DC Cables
Nominal Cross Sectional area of conductor Wire Diameter Max XL-LOSH Insulation Thickness Nominal XL-LOSH Sheath Thickness Nominal Overall Diameter Max. Conductor Resistance at 20 Deg. C (Tinned Copper) Current Carrying Capacity of DC Solar Cable with XL-LOSH Insulation & XL-LOSH Sheathing at 60 Deg. C
Single Cable in Air Single Cable on Surface Two adjacent Cable on Surface
sq. mm. mm mm mm mm Ohm/km Amp. Amp. Amp.
1.50 0.26 0.7 0.8 5.0 13.70 30 29 24
2.50 0.26 0.7 0.8 5.0 8.20 40 39 33
4.00 0.31 0.7 0.8 6.0 5.00 50 52 44
6.00 0.31 0.7 0.8 6.5 3.30 70 67 57
10.00 0.41 0.7 0.8 7.5 1.95 98 93 69
16.00 0.41 0.7 0.9 8.5 1.24 132 125 107
