Unique features:
- Tough Outer PVC Sheath, protects the cores from oil, grease and chemical.
- These cables can be used in damp typical industrial environment conditions.
- Extra flexible copper conductor confirming to conductor class 5.
- 100% Bunching.
- Computerised meter printing ensure complete length.

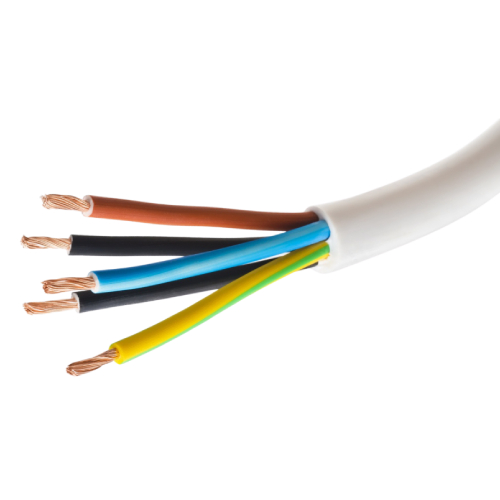

MULTICORE PVC INSULATED & SHEATHED FLEXIBLE CABLES
Application:
General purpose indoors or outdoors in dry or damp situations. Portable tools, washing machines, vacuum cleaners, lawn movers and light domestic applications.
Technical Data:
- Max. Operating Temperature – 70°C
- Rated Voltage – 300/500V
- Specifications – BS EN 50525-2-11
- Range – 2C-5C X 0.50 – 25 mm²
HEAT RESISTING MULTICORE PVC INSULATED & SHEATHED FLEXIBLE CABLES
Application:
General purpose heat resisting indoors or outdoors in dry or damp situations. Portable tools, washing machines, vacuum cleaners, lawn mowers and light domestic applications.
Technical Data:
- Max. Operating Temperature – 90 °C /105°C
- Rated Voltage – 300/500V
- Specifications – BS EN 50525-2-11
- Range – 2C-5C X 0.50 – 25 mm²
Table: Technical Specifications
| Nominal Cross Sectional area of conductor | Number/Nom Dia of cond. strands* | Thickness of Insulation (Nom) | Nominal Thickness of Sheath | Approx. overall Diameter | Current Rating AC | Voltage Drop/Amp/Meter | Max. Conductor Resistance per KM at 20ºC | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 Core | 3 Core | 4 Core | 2 Core | 3 Core | 4 Core | DC or Single Phase AC | 3 Phase AC | |||||
| sq. mm. | mm | mm | mm | mm | mm | mm | mm | mm | Amps | mV | mV | Ohms |
| 0.5 | 16/0.20 | 0.6 | 0.9 | 0.9 | 0.9 | 6.2 | 6.5 | 7.0 | 4 | 83 | 72 | 39.0 |
| 0.75 | 24/0.20 | 0.6 | 0.9 | 0.9 | 0.9 | 6.6 | 6.9 | 7.5 | 7 | 56 | 48 | 26.0 |
| 1.0 | 32/0.20 | 0.6 | 0.9 | 0.9 | 0.9 | 6.9 | 7.3 | 7.9 | 11 | 43 | 37 | 19.5 |
| 1.5 | 30/0.25 | 0.6 | 0.9 | 0.9 | 1.0 | 7.4 | 7.8 | 8.7 | 13 | 31 | 26 | 13.3 |
| 2.5 | 50/0.25 | 0.7 | 1.0 | 1.0 | 1.0 | 8.8 | 9.4 | 10.2 | 18 | 18 | 16 | 7.98 |
| 4.0 | 56/0.30 | 0.8 | 1.0 | 1.0 | 1.0 | 10.2 | 10.9 | 11.9 | 24 | 11 | 9.6 | 4.95 |
| 6.0 | 84/0.30 | 0.80 | 1.1 | 1.1 | 1.2 | 11.5 | 12.2 | 13.6 | 31 | 8 | 7 | 3.30 |
