Unique features:
- Highly Tensile Solid Aluminium conductor.
- Tough outer PVC Sheath protects the cores from oil, grease and chemical.
- These cables can be used in extreme climatic conditions.
- Computerised meter printing ensuring complete length.
Application:
Power cables for energy supply are installed in open air, in underground, in water, in concrete, indoors, in cable ducts, power stations, for industry and distribution boards as well as in subscriber networks, where mechanical damages are not be expected.
Table: Technical Specifications

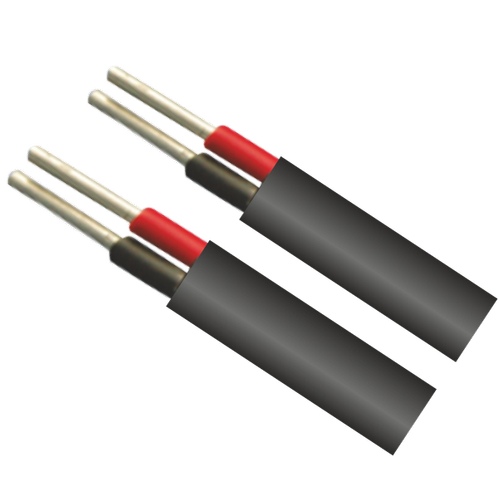

PVC INSULATED AND SHEATED TWIN FLAT ALUMINIUM CABLES UP TO 1100 V. CONFORMING IS TO 694 : 1990
| Counductor | PVC Insulation | PVC Sheath | Current rating At 40°C In Amps. | Max.D/C Resistance@20°C Ohm. / km. | ||||
|---|---|---|---|---|---|---|---|---|
| Nominal c/s Area of Counductor In Sq.mm. | Counductor Construction No./mm. | Nominal Insulation Thickness In mm. | Approx. Core Dia. In mm. | Nominal thickness in mm. | Max. Overall Dimensions, Height in mm. |
Max. Overall Dimensions, Width in mm. |
||
| 2.50 | 1/1.78 | 0.7 | 3.3 | 1.0 | 6.40 | 10.00 | 18 | 12.10 |
| 4.00 | 1/2.25 | 0.8 | 3.8 | 1.0 | 7.20 | 11.50 | 23 | 7.41 |
| 6.00 | 1/2.76 | 0.8 | 4.5 | 1.1 | 8.00 | 13.00 | 30 | 4.61 |
| 10.00 | 1/3.57 | 1.0 | 5.5 | 1.2 | 9.60 | 16.00 | 40 | 3.08 |
General Construction
- Range: 2.5 sq mm to 10.0 sq mm in aluminum.
- Conductor: Highly Tensile Solid Aluminium conductor as per Class 1/ Class 2 of IS: 8130
- Insulation: PVC Type A as per IS 5831:1984
- Outer Sheath: PVC Type ST1 as per IS 5831: 1984
