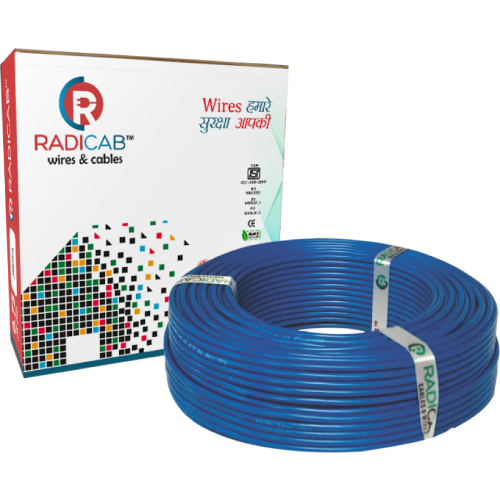

Each RADICAB wire is manufactured using 99.99% pure electrolytic grade, bright annealed bare copper with more than 100% conductivity for conductor, tested by ATCC NABL accredited laboratories. The wire is insulated with a Flame Retardant lead free (FR-LF) PVC compound with a high oxygen and temperature index, specially formulated and manufactured in house. Every wire meet the requirements of IS 694:2010 with latest amendments with improved fire performance properties.
Unique features:
- 99.99% Pure Electrolytic Grade Copper
- Flame Retardant PVC Insulated to prevent fire
- Suitable for houses, buildings, projects etc.
- Environment Friendly
- Available Length – 90 meter / 180 meter
- Available Range – 0.5 sq. mm. to 240 sq. mm.
Specifications:
- Conductor – Plain Annealed Copper as per IS:8130
- Insulation – FR Insulation ( Primary-Natural FRLF PVC/Colour Coated FRLF PVC)
- Available Colour – Red / Yellow / Blue / Black / Green / Grey / White
Multicore Flexible, Sheathed cables 1100V. Conforming IS 694:2010
| Nominal Cross Sectional area of conductor | Number/Nom. Dia of cond. strands* | Thickness of Insulation (Nom) | Thickness of Insulation (Nom) | Max. Conductor Resistance at 20ºC | Current Rating AC | Packing | |
|---|---|---|---|---|---|---|---|
| sq. mm. | mm | mm | mm | Ohms/Km | Amps | Coils | |
| 0.5 | 16/0.20 | 0.6 | 2.20 | 39.00 | 4.00 | 24 | |
| 0.75 | 24/0.20 | 0.6 | 2.50 | 26.00 | 7.00 | 20 | |
| 1.0 | 32/0.20 | 0.6 | 2.70 | 19.5 | 12.00 | 20 | |
| 1.50 | 30/0.25 | 0.6 | 3.10 | 13.3 | 16.00 | 16 | |
| 2.50 | 50/0.25 | 0.70 | 3.70 | 7.98 | 22.00 | 12 | |
| 4.0 | 56/0.30 | 0.80 | 4.30 | 4.95 | 29.00 | 8 | |
| 6.0 | 84/0.30 | 0.80 | 4.80 | 3.3 | 37.00 | 4 | |
| 10.0 | 140/0.30 | 1.00 | 6.70 | 1.91 | 71.00 | 1 | |
