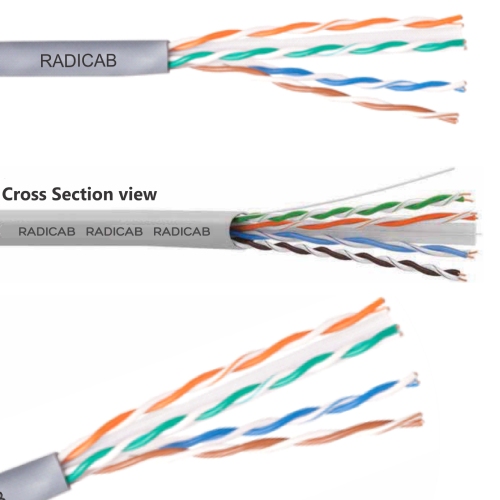

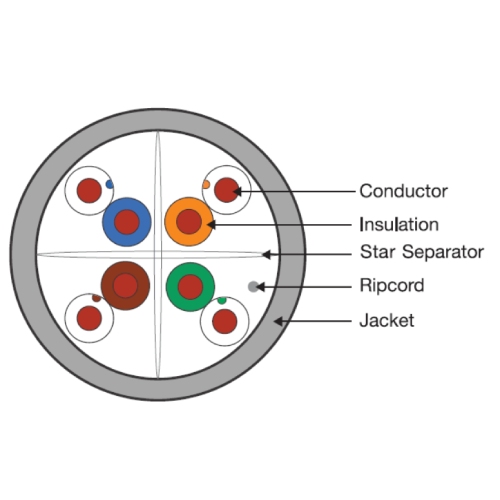

RADICAB Category 6 UTP cable, commonly referred to as CAT 6 UTP is a standardised twisted pair cable for Gigabit Ethernet and other network physical layers that is backward compatible with CAT5/5E. CAT6 features more stringent specifications for crosstalk and system noise. The cable standard provides performance of upto 250 MHz.
Unique features:
- Exceptional material properties and cable design.
- High ACR values-providing low BER (Bit Error-Rate).
- Exceeds cat 6 Best transmission performance.
- Extremely high pair-balance-providing excellent EMC (Electromagnetic compatibility).
- Maximum noise immunity.
- UL-94V0 rated Plastics.
- ETL Verified.
- Longer Cable segment Length.
- High speed data access.
- Total end-to-end horizontal cabling solution.
- Unshielded Twisted Cable.
- Cable supports frequencies up to 250 MHz.
- Cable supports data transfer speeds up to 1000Mbps – Gigabit.
- Available in 100 & 305 MTR Box packaging.
Table: Technical Specifications
| Electrical characteristics : CAT 6 UTP | Outer Diameter : CAT 6 UTP | ||
|---|---|---|---|
| Characteristic Impedance | 100±6 Ohms@ 1-250MHz | Nominal Diameter | 6 ± 0.3 mm 4 twisted pair |
| DC Resistance | 72 Ohms/km (max) | — | — |
| Voltage Rating | 72 Vdc max | Conductor Type | 23 AWG bare annealed copper |
| Dielectric Strength | 1500V/1minute min MHz | Jacket Material | PVC |
| Insulation Resistance | 500M Ohms/km (min)@500Vdc | Standard Colour | Grey |
| Nominal Velocity of Propagation (%) | 69% | Pulling Force | 11.5 kg |
| Conductor Resistance | <7.20/100m | Operating Tem. Ran. | –20°C to + 70°C |
| Mutual Capacitance | 5.6nF/100m nominal | Storage Tem. Ran. | 0°C to + 50°C |
| Resistance Unbalance | 5% Max | — | — |
| Capacitance Unbalance | 330pF/100m | — | — |
| Delay Skew | < 45nS | — | — |
Transmission Parameter as per 100 Mtr. : CAT 6 UTP
| Frequency | Insertion Loss (DB/100M) | NEXT (DB) | PSNEXT (DB) | ELFEXT | PSELFEXT (DB) | RL (DB) | ACR (DB) |
|---|---|---|---|---|---|---|---|
| 1 | 2 | 74.3 | 72.3 | 67.8 | 64.8 | 20 | 72.3 |
| 4 | 3.9 | 65.3 | 63.3 | 55.8 | 52.8 | 23 | 61.5 |
| 8 | 5.3 | 60.8 | 58.8 | 49.7 | 46.7 | 24.5 | 55.5 |
| 10 | 6 | 59.3 | 57.3 | 47.8 | 44.8 | 25 | 53.3 |
| 16 | 7.6 | 56.2 | 54.2 | 43.7 | 40.7 | 25 | 48.6 |
| 20 | 8.5 | 54.8 | 52.8 | 41.8 | 38.8 | 25 | 46.3 |
| 25 | 9.5 | 53.5 | 51.3 | 39.8 | 36.8 | 24.3 | 43.8 |
| 31.25 | 10.7 | 51.9 | 49.9 | 37.9 | 34.9 | 23.6 | 41.2 |
| 62.5 | 15.4 | 47.4 | 45.4 | 31.9 | 28.9 | 21.5 | 32 |
| 100 | 19.8 | 44.3 | 42.3 | 27.8 | 24.8 | 20.1 | 24.5 |
| 200 | 29 | 39.8 | 37.8 | 21.8 | 18.8 | 18 | 10.8 |
