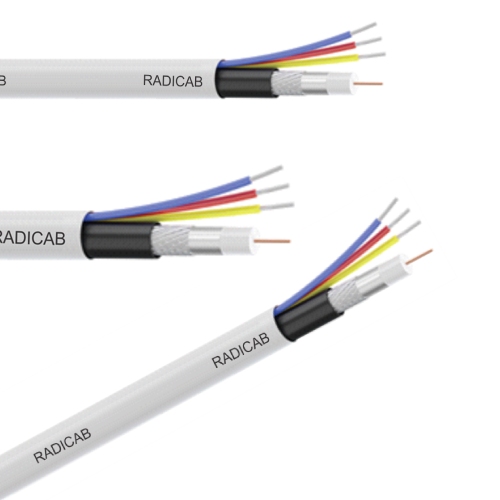

RADICAB CCTV cables are designed to optimise the quality of video signals, which are transmitted through the Coaxial cable in the CCTV.
The Coaxial cable consists of solid annealed bare copper conductor of electrolytic grade which is insulated with foamed dielectric, aluminium foil taped, jelly flooded, braided with AI. Alloy and then jacketed with UV PVC.
Topmost quality of construction of coaxial cable in RADICAB CCTV cables ensures distortion free video signals and thus a clear picture over complete low frequency bandwidth of transmission in such applications.
The impedance of coaxial cable is 75, which matches the CCTV equipment. This matching ensures adequate signal strength, no reflection and best picture quality.
Available in 90 & 180 MTR Packing.
Table: Technical Specifications
Co-Axial Cable
| 1 |
Conductor |
|
Material |
Annealed Bare Copper |
Annealed Bare Copper |
|
No. of Wire/ Dia. of wire |
0.80 ± 0.002 |
0.80 ± 0.002 |
| 2 |
Insulation |
|
Material |
Gas Injected Polyethylene |
Gas Injected Polyethylene |
|
Thickness of Insulation (Nom.) |
1.30 mm |
1.30 mm |
|
Dia. of Insulation |
3.50 ± 0.20 |
3.50 ± 0.20 |
| 3 |
Overall Shielded (Braided) |
|
Material |
Al. Foil - 100% |
Al. Foil - 100% |
|
Material |
Alum. Alloy |
Alum. Alloy |
|
Coverage |
55% |
55% |
| 4 |
Flooding Compound |
Petroleum Jelly |
Petroleum Jelly |
Outer Sheath
|
Material |
PVC |
PVC |
|
Dia. of Sheath |
5.50 mm ± 0.20 mm |
5.50 mm ± 0.20 mm |
| 1 |
Conductor |
|
Material |
Annealed Tinned Copper |
Annealed Tinned Copper |
|
No. of Wire/ Dia of wire |
14/0.13 ± 0.002 |
14/0.13 ± 0.002 |
| 2 |
Insulation |
|
Material |
PVC - Type -A |
PVC - Type -A |
|
Thickness of Insulation (Nom.) |
0.3 |
0.3 |
|
Dia of Insulation |
1.40 mm |
1.40 mm |
Final Cable
| 1 |
Barrier Tape |
|
Thickness of Tape |
25 Micron |
25 Micron |
|
Coverage |
100% |
100% |
| 2 |
Outer Sheath |
|
Material |
PVC - ST-1 |
PVC - ST-1 |
|
Thickness of Sheath (Nom.) |
0.90 mm |
0.90 mm |
