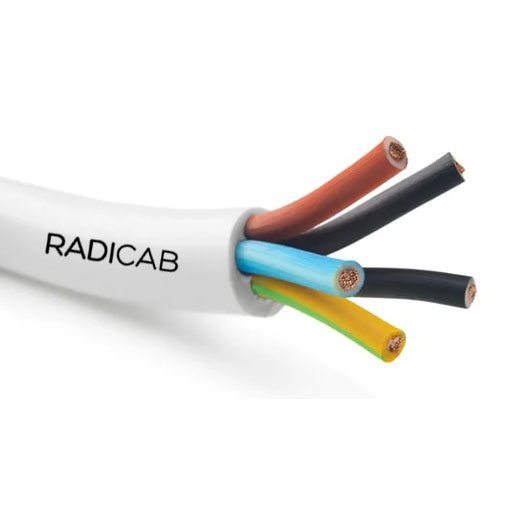

APPLICATION: Round Multicore Cables are widely used for power distribution, control panels, industrial machinery, electrical equipment, automation systems, and general wiring applications. Their flexible multicore construction makes them suitable for installations requiring multiple circuits within a single cable, ensuring organized wiring and reliable performance in residential, commercial, and industrial environments.
CONSTRUCTION:
| Parameter | Specification |
|---|---|
| Conductor | Annealed Copper |
| Conductor Type | Solid / Stranded |
| Insulation | PVC |
| Core Configuration | 2 Core, 3 Core, 4 Core & Multicore |
| Cable Shape | Round |
| Outer Sheath | PVC |
| Voltage Grade | Up to 1100 V |
| Temperature Rating | 70°C |
| Application | Power Distribution, Control Panels & Industrial Wiring |
| Standard | Manufactured as per Applicable IS / IEC Standards |
| No. of Cores | Overall Dia (App.) |
|---|---|
| (No.) | (mm) |
| 7/38 SWG (0.125 sq mm – 26 AWG) | |
| 2 | 3.3 |
| 3 | 3.7 |
| 4 | 4.2 |
| 5 | 4.4 |
| 6 | 5.0 |
| 8 | 5.7 |
| 10 | 6.1 |
| 12 | 6.5 |
| 16 | 7.3 |
| 20 | 8.0 |
| 25 | 8.8 |
| 40 | 10.9 |
| 50 | 11.8 |
